Amstrad ALT-286 + ALT-386SX

Amstrad ALT-286 a ALT-386SX, Anglie, 1990, přenosné PC s VGA LCD / Amstrad ALT-286 and ALT-386SX, England, 1990, transportable PCs with VGA LCD screens
←
→
Youtube video →

Země / Country:

Anglie / England

Rok / Year:

1990

Česky / Czech:

Amstrad ALT-286 a ALT-386SX, Anglie, 1990. Dva téměř shodné přenosné počítače používají stejnou skříň, displej, napájení, baterii i část elektroniky, liší se hlavně procesorovou deskou. ALT-286 používá Intel 80286 a ALT-386SX Intel 80386SX, oba na 16 MHz s možností přepnutí na 8 MHz. Standardní RAM má 1 MB a lze ji rozšířit na 2 nebo 4 MB. Podsvícený VGA LCD má 640 × 480 bodů a 32 stupňů šedi. ALT-286 se dodával s 20MB pevným diskem, ALT-386SX se 40MB diskem, oba mají 1,44MB 3.5" mechaniku. Výbavu doplňuje jeden 16bitový rozšiřující slot, dva sériové porty, paralelní port, VGA výstup a konektor pro externí klávesnici. Odnímatelný NiCd akumulátor umožňuje zhruba dvě hodiny provozu.

Dvojice Amstrad ALT-286 a ALT-386SX patří k období, kdy se firmy snažily vytvořit přenosné osobní počítače použitelné pro skutečnou kancelářskou práci. Proti výstřednímu kufříkovému PPC působí řada ALT už jako klasický výklopný notebook, stále však jde o rozměrné a těžké zařízení. Nezaměnitelným konstrukčním detailem je neobvyklé umístění jediného pantu displeje výrazně vpravo. Oba modely používají podobnou skříň a mnoho shodných součástí, včetně baterie a části dokumentace. Centre for Computing History uvádí, že pro ně existovala společná servisní příručka, což usnadňuje identifikaci zaměnitelných dílů. Rozdíly mezi procesorem 286 a 386SX ukazují rychlý přechod přenosných počítačů k výkonnějšímu hardwaru. Model 386SX se objevoval v dobových srovnávacích testech notebooků vedle výrobků Compaq, NEC nebo Toshiba. V té době už Amstrad nesoutěžil jen s výrobci levných domácích počítačů, ale také s etablovanými dodavateli profesionálních PC.

English / Anglicky:

Amstrad ALT-286 and ALT-386SX, England, 1990. These two closely related portable PCs share the same case, display, power system, battery and much of their electronics, differing mainly in the processor board. The ALT-286 uses an Intel 80286 and the ALT-386SX an Intel 80386SX, both at 16 MHz and switchable to 8 MHz. Standard RAM is 1 MB, expandable to 2 or 4 MB. The backlit VGA LCD provides 640 × 480 pixels with 32 grey levels. The ALT-286 was specified with a 20 MB hard disk and the ALT-386SX with 40 MB, while both have a 1.44 MB 3.5" floppy drive. Expansion includes one 16 bit slot, two serial ports, a parallel port, VGA output and external keyboard connection. The removable NiCd battery provides about two hours of operation.

The Amstrad ALT-286 and ALT-386SX belong to the period when manufacturers were trying to create portable computers suitable for serious office work. Compared with the eccentric suitcase style PPC, the ALT family already resembles a conventional folding notebook, although it remains large and heavy. One particularly distinctive feature is the single display hinge, positioned unusually far to the right. Both models use similar enclosures and share many components, including the battery and parts of the documentation. The Centre for Computing History notes that they even shared a service manual, which can help restorers identify interchangeable parts. The difference between the 286 and 386SX processors illustrates the rapid increase in laptop computing power. Contemporary comparative reviews placed the ALT-386SX alongside portable computers from Compaq, NEC and Toshiba. Amstrad was no longer competing only with makers of inexpensive home computers, but also with established professional PC suppliers.

Technické údaje / Specifications

Výrobce / Manufacturer: Amstrad plc, Anglie / Amstrad plc, England

Model: Amstrad ALT-286 + ALT-386SX

Rok / Year: 1990

Země / Country: Anglie / England

Typ / Type: Dva různé přenosné počítače kompatibilní s IBM PC / Two distinct IBM PC compatible portable computers

CPU: ALT-286: Intel 80286, ALT-386SX: Intel 80386SX / ALT-286: Intel 80286, ALT-386SX: Intel 80386SX

Takt CPU / CPU clock: 16 MHz, možnost přepnutí na 8 MHz / 16 MHz, switchable to 8 MHz

RAM: Standardně 1 MB, rozšiřitelná na 2 nebo 4 MB / 1 MB standard, expandable to 2 MB or 4 MB

ROM: ALT-286: dvě BIOS EPROM typu TMS27C256 po 32 KB, fyzicky celkem 64 KB ROM. U ALT-386SX kapacita BIOS ROM zatím není spolehlivě doložena / ALT-286: two TMS27C256 BIOS EPROMs of 32 KB each, 64 KB total physical ROM capacity. ALT-386SX BIOS ROM capacity has not yet been reliably established

Operační systém / Operating system: Kompatibilní s MS-DOS načítaným z disku, PC BIOS v ROM / MS-DOS compatible, loaded from disk, PC BIOS (ROM)

Video / Graphics: Cirrus Logic VGA, podsvícený monochromatický LCD 640 × 480 s 32 stupni šedi, externí VGA / Cirrus Logic VGA, backlit monochrome LCD 640 × 480, 32 grey levels, external VGA output

Zvuk / Sound: PC reproduktor / PC speaker

Média / Storage: ALT-286: HDD 20 MB, ALT-386SX: HDD 40 MB, oba se 3.5" disketovou mechanikou 1,44 MB / ALT-286: 20 MB HDD, ALT-386SX: 40 MB HDD, both with 1.44 MB 3.5" floppy drive

Rozhraní / Interfaces: Jeden 16bitový rozšiřující slot poloviční délky, dva 9pinové sériové porty, 25pinový paralelní port, externí VGA, AT klávesnice, konektor externí diskety / One 16 bit half length expansion slot, two 9 pin serial ports, 25 pin parallel port, external VGA, AT keyboard, external floppy connector

Napájení / Power: Vestavěný zdroj pro 110/220/240 V AC, vyjímatelná 12V NiCd baterie 2400 mAh, přibližně 2 hodiny provozu / Internal 110/220/240 V AC supply, removable 12 V 2400 mAh NiCd battery, about 2 hours operation

Rozměry / Dimensions: 318 × 380 × 95 mm, asi 7 kg s baterií / 318 × 380 × 95 mm, about 7.0 kg with battery

Původní cena / Original price: ALT-286 přibližně 1 600 GBP, ALT-386SX kolem 2 299 GBP / ALT-286 about £1,600, ALT-386SX about £2,299

Náš exemplář / Our machine

Česky / Czech:

Ve sbírce mám oba modely, Amstrad ALT-286 i ALT-386SX. Oba počítače jsem vyčistil a nahrál na ně MS-DOS. U jednoho z nich se původní NiCd baterie nedochovala, jinak nebyla nutná žádná větší oprava. Oba laptopy jsou dnes plně funkční.

English / Anglicky:

I have both models in the collection, the Amstrad ALT-286 and ALT-386SX. I cleaned both computers and installed MS-DOS on them. The original NiCd battery is no longer present in one of the two machines, but otherwise no major repair was required. Both laptops are now fully operational.

Zdroje / Sources

https://oldcrap.org/wp-content/uploads/2024/03/amstrad-alt286-alt386sx-service-manual.pdf

https://www.computinghistory.org.uk/det/31494/Amstrad-ALT-286-386SX-User-Manual/

https://cpcrulez.fr/hardware-pc-AMSTRAD_PC-alt-386sx.htm

https://wiki.retrotechcollection.com/Amstrad_ALT-286_/_ALT-386SX_Service_Manual

https://wiki.retrotechcollection.com/Amstrad_ALT-286_Maintenance_Guide

Fotodokumentace / Photo documentation

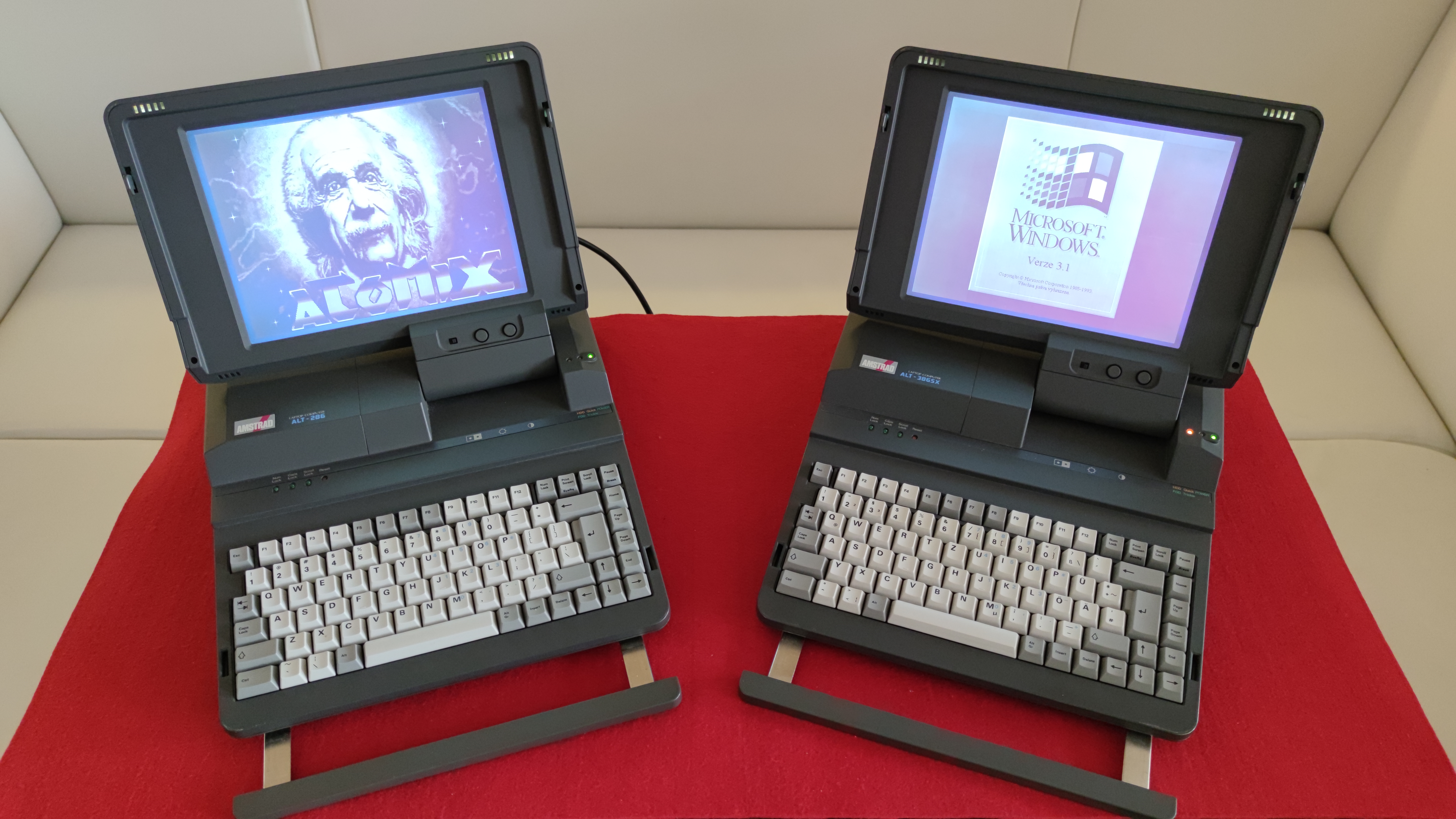

Amstrad ALT 286 a ALT 386SX, dva otevřené přenosné notebooky s aktivními LCD obrazovkami / Amstrad ALT 286 a ALT 386SX, two open portable notebooks with their LCD screens on
Amstrad ALT 286 a ALT 386SX, šikmý pohled na dvojici otevřených notebooků Amstrad / Amstrad ALT 286 a ALT 386SX, angled view of the two open Amstrad notebooks
Amstrad ALT 286 a ALT 386SX, pohled shora na srovnání klávesnic obou modelů / Amstrad ALT 286 a ALT 386SX, top view comparing the keyboards of both models
Zadní panely dvou notebooků Amstrad ALT-286 a ALT-386SX vedle sebe s připojenými napájecími kabely a sériovými konektory / Rear panels of two Amstrad ALT-286 and ALT-386SX laptops side by side, showing connected power cables and serial connectors
Amstrad ALT 286 a ALT 386SX, detail typového štítku jednoho notebooku / Amstrad ALT 286 a ALT 386SX, close-up of identification plate on one laptop
Amstrad ALT 286 a ALT 386SX, boční profily obou počítačů s větracími otvory / Amstrad ALT 286 a ALT 386SX, side profiles of both computers with ventilation slots
Amstrad ALT 286 a ALT 386SX, horní kryty obou složených notebooků / Amstrad ALT 286 a ALT 386SX, upper covers of both closed notebooks
Amstrad ALT 286 a ALT 386SX, detail modelového označení ALT na skříni / Amstrad ALT 286 a ALT 386SX, close-up of ALT model marking on the enclosure
Amstrad ALT 286 a ALT 386SX, vnitřní počítačová deska a odkrytá elektronika notebooku / Amstrad ALT 286 a ALT 386SX, internal computer board and exposed laptop electronics
Amstrad ALT 286 a ALT 386SX, přední srovnání dvou počítačů s klávesnicemi a obrazovkami / Amstrad ALT 286 a ALT 386SX, front comparison of two computers with keyboards and screens
Amstrad ALT 286 a ALT 386SX, dva notebooky s vysunutými displeji fotografované z boku / Amstrad ALT 286 a ALT 386SX, two laptops with opened displays photographed from the side
Amstrad ALT 286 a ALT 386SX, zadní strana otevřených displejů a portových panelů / Amstrad ALT 286 a ALT 386SX, back of the open displays and connector panels
Amstrad ALT 286 a ALT 386SX, dva spodní kryty s výrobními štítky vedle sebe / Amstrad ALT 286 a ALT 386SX, two bottom covers with identification labels side by side
Amstrad ALT 286 a ALT 386SX, detail druhého typového štítku a údajů o napájení / Amstrad ALT 286 a ALT 386SX, detail of second identification plate and power rating
Amstrad ALT 286 a ALT 386SX, pohled na boky a porty dvou notebooků / Amstrad ALT 286 a ALT 386SX, side connectors and interfaces of the two laptops
Amstrad ALT 286 a ALT 386SX, spodní strany notebooků s oddělenou bateriovou částí / Amstrad ALT 286 a ALT 386SX, undersides of laptops with battery compartment areas
Amstrad ALT 286 a ALT 386SX, srovnání loga Amstrad ALT a krytů dvou variant / Amstrad ALT 286 a ALT 386SX, comparison of Amstrad ALT logo and cases of the two variants
Amstrad ALT 286 a ALT 386SX, detail vnitřní paměťové desky s několika rozšiřujícími paticemi / Amstrad ALT 286 a ALT 386SX, close-up of internal memory board with expansion sockets
