Amstrad CPC 464

Amstrad CPC 464, Anglie, 1984, 8bitový domácí počítač s vestavěným kazetovým magnetofonem / Amstrad CPC 464, England, 1984, 8-bit home computer with a built-in cassette recorder
←
→
Youtube video →

Země / Country:

Anglie / England

Rok / Year:

1984

Česky / Czech:

Amstrad CPC 464, Anglie, 1984. První počítač značky Amstrad byl veřejně představen 11. dubna 1984 ve Westminster School v Londýně a do britských obchodů dorazil 21. června. Základní myšlenkou Alana Sugara bylo nabídnout hotový domácí systém, který nebude zabírat rodinnou televizi ani vyžadovat samostatný magnetofon. CPC 464 proto spojuje počítač, plnohodnotnou klávesnici a kazetový magnetofon v jedné skříni a byl prodáván s vlastním monitorem, který zároveň napájí počítač. Uvnitř pracuje Zilog Z80A na 4 MHz, 64 KB RAM a 32 KB ROM s firmwarem a Locomotive BASIC 1.0. Obraz vytváří Motorola 6845 spolu s Amstrad Gate Array. Standardní režimy nabízejí 160 × 200 bodů v 16 barvách, 320 × 200 ve 4 barvách nebo 640 × 200 ve 2 barvách z palety 27 barev. Zvuk obstarává tříkanálový AY-3-8912 a vestavěný kazetový magnetofon pracuje s rychlostí 1000 nebo 2000 baudů. Pro disketový provoz bylo možné připojit externí DDI-1, který přidával 3" mechaniku a diskový software. CPC 464 se stal základem úspěšné řady Amstrad CPC.

Příběh prvního Amstradu CPC je především příběhem chytrého obchodního rozhodnutí. Alan Sugar chtěl vstoupit na trh osobních počítačů s výrobkem, který zákazník vybalí z krabice a může ihned používat. Konkurenční počítače často vyžadovaly vlastní televizor, magnetofon nebo zvlášť kupované příslušenství. CPC 464 proto spojoval počítač a kazetový záznamník v jedné skříni a dodával se s odpovídajícím monitorem. Sugar při slavnostním uvedení ve Westminster School v dubnu 1984 zdůraznil možnost nabídnout kompletní sestavu se zeleným monitorem za 199 liber, barevné provedení za 299 liber. Do britských obchodů se počítač dostal v červnu a podle firemního historického záznamu se první dodávka u obchodníka Rumbelows velmi rychle vyprodala. Komerční úspěch CPC 464 ukázal, že pro mnoho rodin byla jednoduchost pořízení a provozu stejně důležitá jako počet barev nebo rychlost procesoru.

English / Anglicky:

Amstrad CPC 464, England, 1984. Amstrad's first computer was publicly unveiled on 11 April 1984 at Westminster School in London and reached UK shops on 21 June. Alan Sugar's idea was to offer a complete home system that did not take over the family television or require a separate cassette recorder. The CPC 464 therefore combines the computer, full size keyboard and cassette deck in one case and was sold with its own monitor, which also supplies power to the computer. Inside is a Zilog Z80A running at 4 MHz, 64 KB RAM and 32 KB ROM containing the firmware and Locomotive BASIC 1.0. Video is generated by a Motorola 6845 together with Amstrad's Gate Array. The standard modes provide 160 × 200 pixels in 16 colours, 320 × 200 in 4 colours or 640 × 200 in 2 colours from a palette of 27. Sound comes from the three channel AY-3-8912 and the built in cassette recorder operates at 1000 or 2000 baud. For disk use, the external DDI-1 could be attached, adding a 3" drive and disk software. The CPC 464 became the foundation of the successful Amstrad CPC range.

The story of the first Amstrad CPC is above all one of a shrewd commercial decision. Alan Sugar wanted to enter the personal computer market with a product that customers could unpack and use immediately. Rival machines often required a family television, an external cassette recorder or separately purchased accessories. The CPC 464 therefore combined the computer and tape recorder in one enclosure and was supplied with a matching monitor. At the Westminster School launch in April 1984, Sugar emphasised that a complete system with a green screen could be sold for £199, with a colour monitor version at £299. The computer reached British shops in June and, according to Amstrad's company history, the initial allocation at retailer Rumbelows sold out rapidly. The CPC 464's success demonstrated that ease of purchase and use could matter just as much to families as processor speed or the number of colours on screen.

Technické údaje / Specifications

Výrobce / Manufacturer: Amstrad Consumer Electronics plc, Anglie / Amstrad Consumer Electronics plc, England

Model: CPC 464

Rok / Year: 1984

Země / Country: Anglie / England

Typ / Type: 8 bit home / personal computer

CPU: Zilog Z80A / Zilog Z80A

Takt CPU / CPU clock: 4 MHz / 4 MHz

RAM: 64 KB, v BASICu uživateli dostupných 43 533 bajtů / 64 KB, 43,533 bytes available to the user under BASIC

ROM: 32 KB, firmware a Locomotive BASIC 1.0 / 32 KB, firmware + Locomotive BASIC 1.0

Operační systém / Operating system: Locomotive BASIC 1.0 v ROM, volitelně AMSDOS a CP/M s disketovým hardwarem / Locomotive BASIC 1.0 (ROM), optional AMSDOS and CP/M with disk hardware

Video / Graphics: Motorola 6845 CRTC a Amstrad Gate Array, 160 × 200 v 16 barvách, 320 × 200 ve 4 barvách, 640 × 200 ve 2 barvách, paleta 27 barev / Motorola 6845 CRTC and Amstrad Gate Array, 160 × 200 in 16 colours, 320 × 200 in 4 colours, 640 × 200 in 2 colours, 27-colour palette

Zvuk / Sound: General Instrument AY-3-8912, tři kanály, vestavěný monofonní reproduktor, externí stereo výstup / General Instrument AY-3-8912, 3 channels, internal mono speaker, external stereo output

Média / Storage: Vestavěný kazetový magnetofon 1000 nebo 2000 baudů, volitelný externí 3" disketový systém DDI-1 / Built in cassette recorder, 1000 or 2000 baud, optional DDI-1 external 3" floppy system

Rozhraní / Interfaces: 50pinová rozšiřující sběrnice, paralelní tiskový port kompatibilní s Centronics, 9pinový joystickový port až pro dva ovladače, RGB monitor, stereo audio výstup 3,5 mm / 50 pin expansion bus, Centronics compatible parallel printer port, 9 pin joystick port for up to 2 joysticks, RGB monitor output, 3.5 mm stereo audio output

Napájení / Power: 5 V DC, 2 A, kladný střed, obvykle napájeno z příslušného monitoru / 5 V DC, 2 A, centre positive, normally supplied by the dedicated monitor

Rozměry / Dimensions: 580 × 170 × 70 mm / 580 × 170 × 70 mm

Původní cena / Original price: Při uvedení v roce 1984 stál 249 GBP se zeleným monitorem GT64 a 359 GBP s barevným CTM640, později ceny klesly na 199 a 299 GBP / At the 1984 launch, £249 with GT64 green monitor and £359 with CTM640 colour monitor, later reduced to £199 and £299

Náš exemplář / Our machine

Česky / Czech:

Exemplář RetroComputer.cz je klasický Amstrad CPC 464 v původním provedení s integrovanou klávesnicí a vestavěným kazetovým magnetofonem. Stroj je v mé sbírce zdokumentován vlastními detailními fotografiemi, které zachycují jeho provedení a konstrukční detaily. K záznamu jsme připojili také dobové a historické materiály, takže je možné porovnat dochovaný počítač s tím, jak byl CPC 464 prezentován v době svého uvedení.

English / Anglicky:

The RetroComputer.cz example is a classic Amstrad CPC 464 in its original style configuration with the integrated keyboard and built in cassette recorder. The machine is documented in my collection with my own detailed photographs showing its design and construction details. The record also includes period and historical material, making it possible to compare the surviving computer with the way the CPC 464 was presented when it was introduced.

Zdroje / Sources

https://amstrad.com/product/cpc464/

https://amstrad.com/product-category/computer/

https://www.manualslib.com/manual/862146/Amstrad-Cpc464.html

https://www.manualslib.com/manual/4053936/Amstrad-Cpc-464.html

https://www.cpcwiki.eu/index.php/464

https://oldwiki.cpcwiki.eu/index.php/Power_Supply_for_CPC_and_CPC_plus

https://nosher.net/archives/computers/your_computer_1984-12_001a

Fotodokumentace / Photo documentation

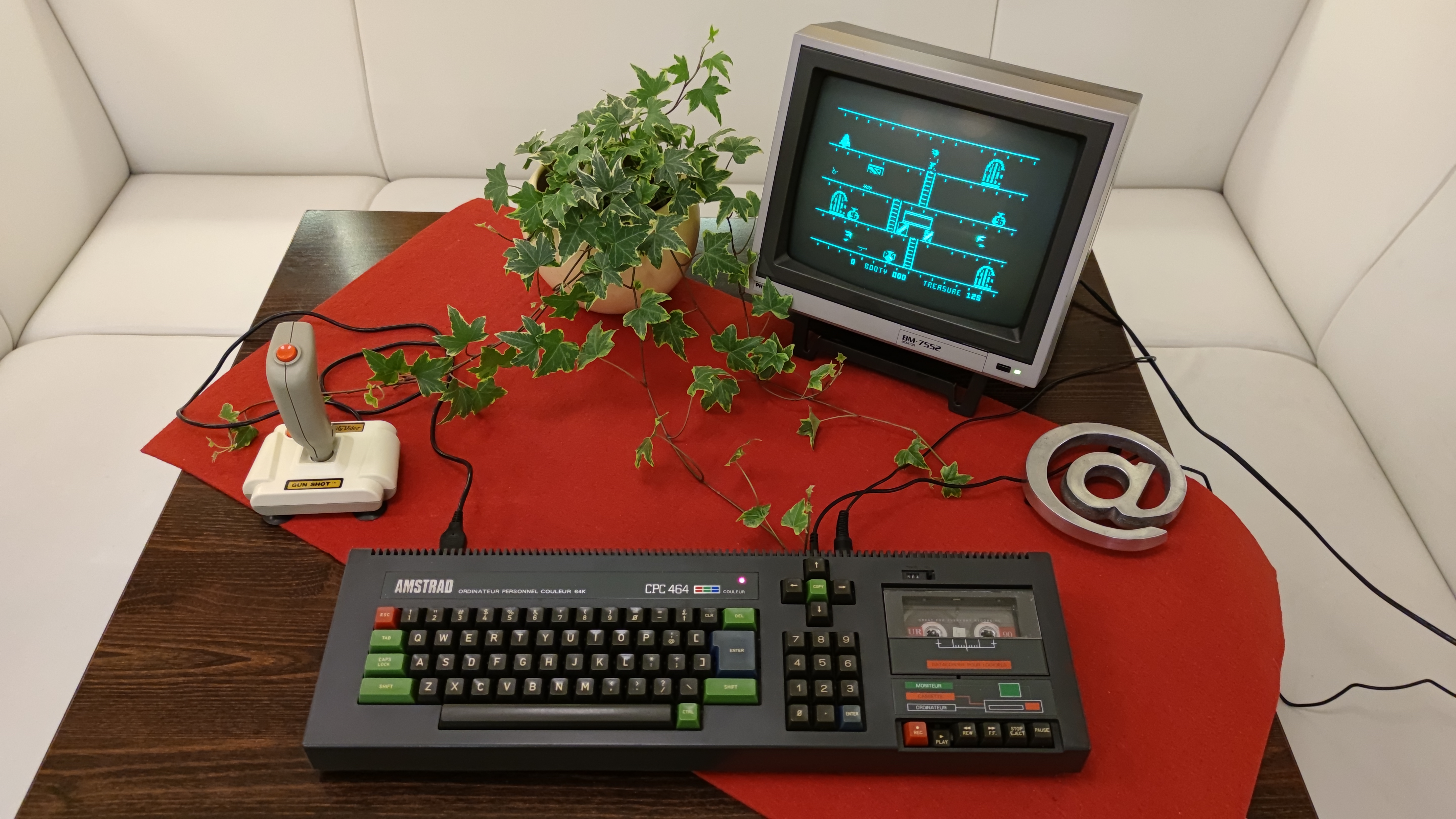

Amstrad CPC 464, klasický osmibitový počítač s monitorem zobrazujícím běžící hru / Amstrad CPC 464, classic eight bit computer with monitor running a video game

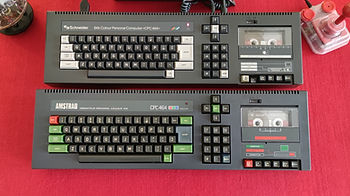

Amstrad CPC 464, srovnání šedého provedení s kazetovou mechanikou v pravé části klávesnice / Amstrad CPC 464, comparison showing grey case and cassette deck at right of keyboard
Amstrad CPC 464, celková sestava počítače se zapnutým monitorem a originální klávesnicí / Amstrad CPC 464, complete computer setup with powered monitor and original keyboard
Amstrad CPC 464, boční srovnání dvou skříní s vestavěnou kazetovou mechanikou / Amstrad CPC 464, side view comparing two cases with integrated cassette deck
Amstrad CPC 464, původní základní deska s osazenými integrovanými obvody a konektory / Amstrad CPC 464, original motherboard fitted with integrated circuits and connectors
Amstrad CPC 464, historická černobílá fotografie obchodníka stojícího vedle počítače Amstrad / Amstrad CPC 464, historic black and white photograph of businessman beside an Amstrad computer
Amstrad CPC 464, dobová tištěná reklama Amstrad na počítač a monitor / Amstrad CPC 464, vintage printed Amstrad advertisement featuring computer and monitor
Amstrad CPC 464, francouzská dobová reklama na řadu Amstrad CPC s uvedenými cenami / Amstrad CPC 464, French period advertisement for Amstrad CPC range showing prices
Amstrad CPC 464, úhlový pohled na domácí počítač a monitor při provozu / Amstrad CPC 464, angled view of home computer and operating monitor
Amstrad CPC 464, dva počítače CPC 464 s různými barvami skříní položené nad sebou / Amstrad CPC 464, two CPC 464 computers with different case colours arranged together
Amstrad CPC 464, zadní strana dvou CPC 464 s napájecími a obrazovými konektory / Amstrad CPC 464, rear panels of two CPC 464 systems showing power and video sockets
Amstrad CPC 464, spodní kryty dvou počítačů se štítky a původním provedením skříně / Amstrad CPC 464, undersides of two computers with labels and original cases
Amstrad CPC 464, spodní strana zelené základní desky s pájecími spoji / Amstrad CPC 464, underside of green motherboard showing solder traces
Amstrad CPC 464, dobový britský reklamní leták propagující cenově dostupný Amstrad CPC 464 / Amstrad CPC 464, period British advertisement promoting affordable Amstrad CPC 464
Amstrad CPC 464, historická anglická reklama na kompletní domácí počítač Amstrad / Amstrad CPC 464, historic English language advert for complete Amstrad home computer
