Amstrad CPC 664

Amstrad CPC 664, Anglie, 1985, 8bitový počítač s vestavěnou 3" disketovou mechanikou / Amstrad CPC 664, England, 1985, 8-bit computer with a built-in 3" floppy disk drive
←
→
Youtube video →

Země / Country:

Anglie / England

Rok / Year:

1985

Česky / Czech:

Amstrad CPC 664, Anglie, 1985. Druhý model řady CPC nahradil vestavěný kazetový magnetofon 3" disketovou mechanikou. Používá Zilog Z80A na 4 MHz, 64 KB RAM a 48 KB ROM, z toho 32 KB tvoří firmware a Locomotive BASIC 1.1 a dalších 16 KB diskový ROM s AMSDOS. Obrazové režimy zůstaly stejné jako u CPC 464, tedy 160 × 200 v 16 barvách, 320 × 200 ve 4 barvách a 640 × 200 ve 2 barvách z palety 27 barev. Zvuk zajišťuje AY-3-8912 se třemi kanály. Vestavěná mechanika ukládá přibližně 178 KB dat na jednu stranu 3" diskety, připojit lze i druhou mechaniku a externí kazetový magnetofon. CPC 664 se prodával jen krátce v roce 1985, protože jej brzy nahradil CPC 6128.

CPC 664 má v historii Amstradu zvláštní místo. Když firma na jaře 1985 vyměnila vestavěný kazetový magnetofon svého úspěšného CPC 464 za disketovou mechaniku, otevřela cestu k pohodlnějšímu používání programů i práci s daty. Nový model měl střízlivější klávesnici a působil jako serióznější pracovní počítač. O pouhých několik měsíců později však přišel CPC 6128 se 128 KB RAM a Amstrad rozhodl, že oba disketové modely nebude nabízet současně. Produkce CPC 664 tak skončila neobvykle brzy, podle dobových záznamů trvala jen během části roku 1985. Zajímavý je také způsob napájení. Třípalcová mechanika potřebovala vedle pěti voltů další dvanáctivoltový přívod ze zvlášť upraveného monitoru. Při dnešním zprovozňování je proto třeba dávat pozor na správnou sestavu zdroje, monitoru a kabelů. Právě krátký výrobní život dělá z CPC 664 sběratelsky zajímavý mezičlánek mezi dvěma mnohem známějšími Amstrady.

English / Anglicky:

Amstrad CPC 664, England, 1985. The second CPC model replaced the built in cassette recorder with an integrated 3" floppy drive. It uses a Zilog Z80A at 4 MHz, 64 KB RAM and 48 KB ROM, consisting of 32 KB for firmware and Locomotive BASIC 1.1 plus a 16 KB disk ROM with AMSDOS. Its display modes remain those of the CPC 464, with 160 × 200 in 16 colours, 320 × 200 in 4 colours and 640 × 200 in 2 colours from a 27 colour palette. Sound is provided by the three channel AY-3-8912. The built in drive stores about 178 KB of data per side, while a second drive and an external cassette recorder can also be connected. The CPC 664 had only a short market life in 1985 before the CPC 6128 replaced it.

The CPC 664 occupies an unusual position in Amstrad history. When the company replaced the built-in cassette recorder of its successful CPC 464 with a floppy drive in spring 1985, it made loading programs and working with data substantially easier. The new machine also had a more restrained keyboard and presented itself as a more serious working computer. Only a few months later the CPC 6128 appeared with 128 KB RAM, and Amstrad decided not to keep both floppy models in production. The CPC 664 therefore enjoyed an unusually short manufacturing life, limited to part of 1985 according to contemporary reports. Its power arrangements are another important detail. The three inch drive needed a separate twelve volt supply in addition to the normal five volts, provided through an updated matching monitor. Restorers therefore need the correct combination of display, power connections and cables. Its short career makes the CPC 664 a particularly interesting intermediate model between two far better known Amstrad computers.

Technické údaje / Specifications

Výrobce / Manufacturer: Amstrad Consumer Electronics plc, Anglie / Amstrad Consumer Electronics plc, England

Model: CPC 664

Rok / Year: 1985

Země / Country: Anglie / England

Typ / Type: 8 bit home / personal computer

CPU: Zilog Z80A / Zilog Z80A

Takt CPU / CPU clock: 4 MHz / 4 MHz

RAM: 64 KB, přibližně 42 KB dostupných uživateli / 64 KB, about 42 KB available to the user

ROM: Celkem 48 KB, 32 KB firmware a Locomotive BASIC 1.1, 16 KB disketová ROM AMSDOS / 48 KB total, 32 KB firmware + Locomotive BASIC 1.1, 16 KB AMSDOS disk ROM

Operační systém / Operating system: Locomotive BASIC 1.1 a AMSDOS v ROM, volitelně CP/M / Locomotive BASIC 1.1 and AMSDOS (ROM), CP/M optional

Video / Graphics: Motorola 6845 CRTC a Amstrad Gate Array, 160 × 200 v 16 barvách, 320 × 200 ve 4 barvách, 640 × 200 ve 2 barvách, paleta 27 barev / Motorola 6845 CRTC and Amstrad Gate Array, 160 × 200 in 16 colours, 320 × 200 in 4 colours, 640 × 200 in 2 colours, 27-colour palette

Zvuk / Sound: General Instrument AY-3-8912, tři kanály, vestavěný monofonní reproduktor, stereo výstup / General Instrument AY-3-8912, 3 channels, internal mono speaker, stereo output

Média / Storage: Vestavěná 3" disketová mechanika, přibližně 178 KB uživatelských dat na stranu, volitelná druhá mechanika, podpora externího magnetofonu / Built in 3" floppy drive, about 178 KB data capacity per side, optional second drive, external cassette supported

Rozhraní / Interfaces: Rozšiřující sběrnice, tiskový port kompatibilní s Centronics, připojení druhé diskety, 9pinový joystick, RGB/jasový monitor, externí kazetový magnetofon, stereo audio 3,5 mm / Expansion bus, Centronics compatible printer port, second floppy drive, 9 pin joystick, RGB/luminance monitor, external cassette, 3.5 mm stereo audio

Napájení / Power: 5 V DC pro počítač a 12 V DC pro disketovou mechaniku, obojí dodává příslušný monitor / 5 V DC for computer plus 12 V DC for floppy drive, both supplied by the dedicated monitor

Rozměry / Dimensions: 580 × 170 × 70 mm / 580 × 170 × 70 mm

Původní cena / Original price: 339 GBP s monochromatickým zeleným monitorem GT65, 449 GBP s barevným CTM644 / £339 with GT65 green monitor, £449 with CTM644 colour monitor

Náš exemplář / Our machine

Česky / Czech:

Tento Amstrad CPC 664 jsem získal jako nefunkční. Příčinou byly dvě vadné mask ROM přímo na základní desce. Amstrad 40022 je 32KB systémová ROM, která obsahuje firmware počítače a Locomotive BASIC 1.1, zatímco Amstrad 40015 je samostatná 16KB disková ROM s AMSDOS pro vestavěnou 3" mechaniku. Oba vadné obvody jsem z desky vyletoval, jejich pozice osadil paticemi a původní ROM nahradil naprogramovanými EPROM s odpovídajícím obsahem. Po opravě počítač znovu naběhl a diagnostika potvrdila funkční základní 64KB RAM i detekci řadiče disketové mechaniky. Oprava včetně vyjmutých původních ROM, základní desky a diagnostického testu je zachycena ve fotodokumentaci.

English / Anglicky:

I acquired this Amstrad CPC 664 in non working condition. The fault was traced to two failed mask ROMs on the motherboard. Amstrad 40022 is the 32 KB system ROM containing the machine firmware and Locomotive BASIC 1.1, while Amstrad 40015 is the separate 16 KB disk ROM containing AMSDOS for the built in 3" drive. I desoldered both faulty devices, fitted sockets in their positions and replaced the original ROMs with programmed EPROMs containing the corresponding ROM images. After the repair the computer booted again, and diagnostics confirmed the base 64 KB RAM and detection of the floppy disk controller. The removed original ROMs, motherboard repair and diagnostic test are documented in the photo gallery.

Zdroje / Sources

https://amstrad.com/product-category/computer/

https://www.cpcwiki.eu/imgs/1/1f/Service.manual.cpc664.ctm644.gt65.pdf

https://oldwiki.cpcwiki.eu/index.php/Amstrad_part_numbers

https://www.grimware.org/doku.php/documentations/hardware/amstrad.cpc664

https://www.computinghistory.org.uk/det/22701/Amstrad-CPC-664/

https://www.worldradiohistory.com/UK/Practical-Computing/80s/Practical-Computing-1985-06-S-OCR.pdf

https://manualzz.com/doc/64274931/amstrad-cpc664--ctm644-service-manual

Fotodokumentace / Photo documentation

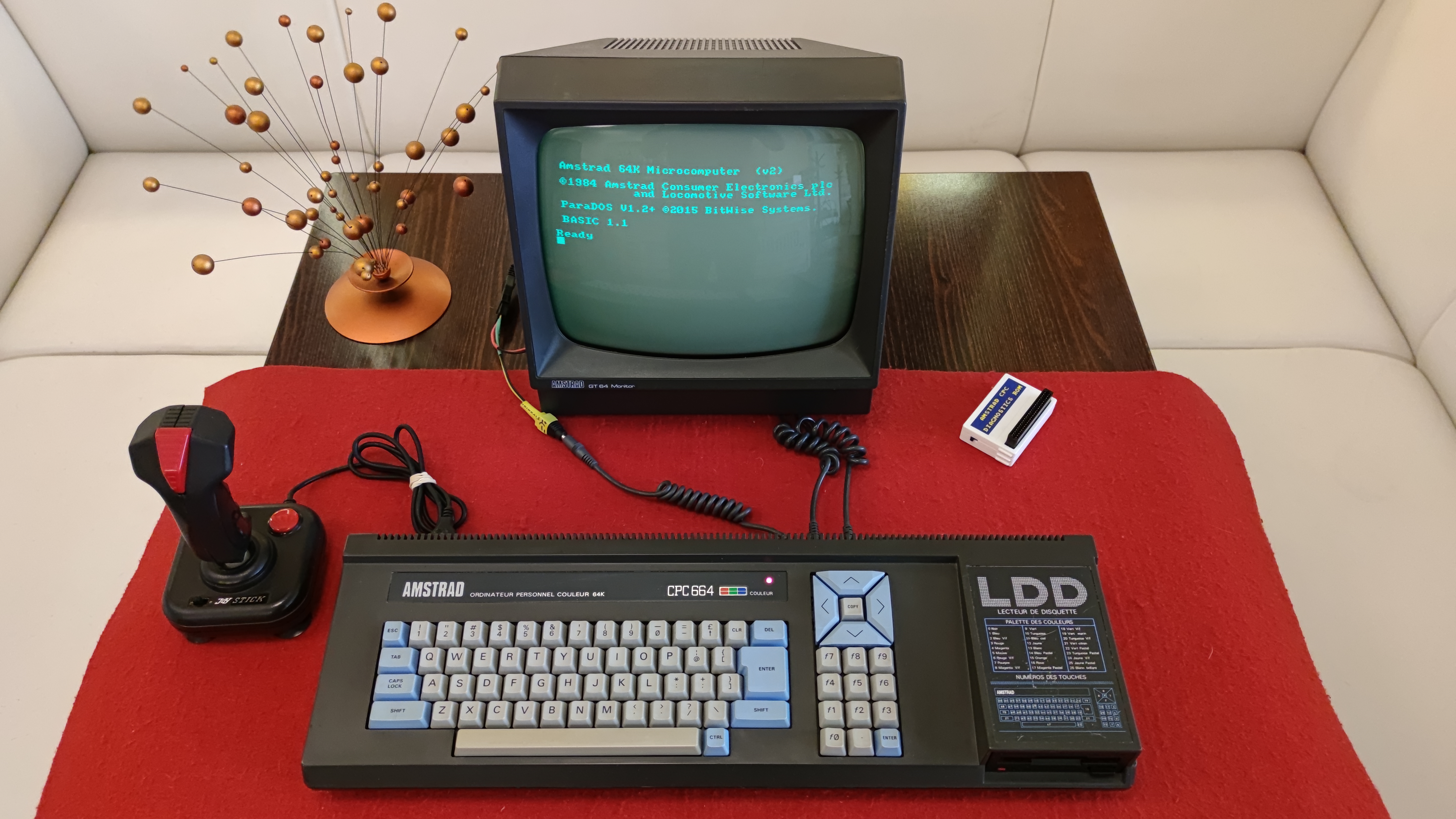

Amstrad CPC 664, funkční počítač s dobovým monitorem a joystickem na stole / Amstrad CPC 664, working computer with period monitor and joystick on table
